Thursday 4 December 2014

Wireless Garden sensing Prototype A and B (Intel Galileo, Spark Core and Grove)

We have a small garden at home and adding sensors to it was merely a matter of time, specially now that winter is coming, and it is time to plant our pepper and tomatoes plants.  Below are the two iterations made to my wireless gardening sensor (still in beta stage).

Prototype A: Intel Galileo on board


For the first prototype I used the Intel Galileo Board I won at Senzations, the objective was to test the sensors, familiarize with the obtained values, and test publishing to Ubidots.  For the test I used my wife's pepper plant.



Light, Temperature and Humidity are variables easy to understand and correlate, but as there was litle information about the Soil Moisture sensor itself, I measured both with the sensor in the free air and submerged into a glass of water, I found out the range was between 0-700 units.  The next step was to water the pepper pot and see the Soil Moisture value when the plant if fully watered, then see the chart going down until the next watering session (when the leaves are "sad" as my wife says), so we can see at which values do we have to trigger an alert.






The actual code was mostly taken from Ubidots examples, as the sensors at this present stage are mostlly analogue, it was only required to use the analogRead() call from the Arduino API.  The sensors are from Grove: the temperature and humidity sensor is I2C-based, the soil moisture and light sensor are analogue.

 Prototype B: Spark Core


With the sensors and the Ubidots platform figured out, the next step was to make the whole thing to run on battery as a stand-alone device.  For this I used the Spark Core I won at IoTogether Hackaton along with a battery charger board I steal borrowed from work, and a 3.7V 800mAh Li-ion battery connected to a battery charging circuit.

To avoid having to solder a wire to the USB 5VDC pin I added a scrambled jumper logic to enable charging the battery when connected to the micro-USB, else the Spark Core will be powered by the battery only.  I have also one power input to throw in a solar panel and charge the battery in the day and discharge over the night, but I still have to figure out how to adapt it to the enclosure.



I added 2 Phidget-like connector to be able to connect Phidget sensors or analog ones following the same pin-out (VDC/GND/Signal), and one Ziglet-like connector to connect any I2C-based sensor, as at the end I want to use digital sensors to keep the power consumption as low as possible, having wired a GPIO pin also to the connector to use interrupts from the sensors as well.

The male pin-header exposes unused GPIOs to be used later, for example one wandering idea is to add an MP3 board with an amplifier and a small speaker, as allegedly this helps plants grow, or maybe do a playback of my wife talking to the plants, which one was it? nevertheless it would also be kinda cool to play nature music when presence is detected... this will be likely an improvement to make if the power consumption can be kept low.

One caveat: I was one of the unlucky Spark owners who had a board with faulty DNS resolve, so I had to include an external DNS client to resolve Ubidots IP address, and then add the host property to my header and initiliaze the Server IP address as shown below:
http_header_t headers[] = {
     { "Content-Type", "application/json" },
     { "X-Auth-Token" , TOKEN },
     { "host", "things.ubidots.com" },
     { NULL, NULL }
};

IPAddress dnsServerIP(8,8,8,8);
IPAddress remote_addr;
DNSClient dns;

char serverName[] = "things.ubidots.com";

void setup() {
    request.port = 80;
    dns.begin(dnsServerIP);
    dns.getHostByName(serverName, remote_addr);
    request.ip = remote_addr;
}

Then to take advantage of the Spark low power mode and try to save battery as most as possible, I use the SLEEP_DEEP_MODE to put the Spark to sleep and awake after 5 minutes, rebooting the code with no memory retention, which is fine in my case as I only want to take single readings and upstream these.  The code runs as follows:

void loop() {

    // Read data from the sensors
    getData();

    // Send data to Ubidots
    postData();

    // Short blink to indicate we have finished posted
    blink_led(500);

    // Stay awake enough time to allow being reprogramed
    delay(AWAKE_BEFORE_SLEEP);

    // Put the core back to sleep
    Spark.sleep(SLEEP_MODE_DEEP, SLEEP_SECONDS);
}

The AWAKE_BEFORE_SLEEP delay makes sure the Spark Core stays awake for 20 seconds, which gives me enough time to reprogram the Spark over the Web IDE from my PC without having to connect the Spark to the host over USB.  One of the things on my to-do list is to measure the current consumption of the device.

The whole thing fits into a standard enclosure, one of the things I have still pending to do is to adapt the sensors to the enclosure, make a small window to be able to visualize the LED, and also fix the solar panel.  I have convinced my daughters to paint the enclosure with a festive theme, so surely I will post this anytime soon.



So that's it, I'm hoping in the holidays to have time to improve the Prototype B, make some measurements and work on the solar panel.  One of the things I will surely test is the ESP8266 cheap WiFI board, but with my Photon already ordered in pre-sale for next year, I think it will make worth the wait, in time for the Prototype C, maybe even a release.


Bring Oneiric-based distros back to live in Linaro and IGEP board

Following the end-of-year tradition of updating production boards, I found an ISEE IGEP v2 board running Linaro distribution on an Oneiric-based release, which reached end of life on May 2013.  One option would be upgrading to a new LTS distro, but as time was limited and the current owner has a if-works-don't-touch strict policy, I choosed instead to update at least its sources:

W: Failed to fetch http://security.ubuntu.com/ubuntu/dists/oneiric-security/main/source/Sources 404 Not Found

Just edit the /etc/apt/sources.list file and replace with the following:

deb http://old-releases.ubuntu.com/ubuntu/ oneiric main
deb-src http://old-releases.ubuntu.com/ubuntu/ oneiric main
deb http://old-releases.ubuntu.com/ubuntu/ oneiric-updates main
deb-src http://old-releases.ubuntu.com/ubuntu/ oneiric-updates main
deb http://old-releases.ubuntu.com/ubuntu/ oneiric universe
deb-src http://old-releases.ubuntu.com/ubuntu/ oneiric universe
deb http://old-releases.ubuntu.com/ubuntu/ oneiric-updates universe
deb-src http://old-releases.ubuntu.com/ubuntu/ oneiric-updates universe
deb http://old-releases.ubuntu.com/ubuntu oneiric-security main
deb-src http://old-releases.ubuntu.com/ubuntu oneiric-security main
deb http://old-releases.ubuntu.com/ubuntu oneiric-security universe
deb-src http://old-releases.ubuntu.com/ubuntu oneiric-security universe

Then run:

sudo apt-get update

Don't forget to also test for ShellShock vulnerability.

Wednesday 3 December 2014

Fix Shellshock on non LTS/deprecated Unix distros

Plenty of things have been said about Shellshock vulnerability and solutions, most of them consisting of upgrading the bash module for LTS distros, but lately as I have dusted my ALIX board based on Voyage 0.9.0 distribution, I found this was not an option: even after upgrading and downloading the bash packet from the dist pool, there were requirements missing to upgrade/install bash from the packet manager. This was my current bash version:

# bash --version
GNU bash, version 4.1.5(1)-release (i486-pc-linux-gnu)
Copyright (C) 2009 Free Software Foundation, Inc.
License GPLv3+: GNU GPL version 3 or later <http://gnu.org/licenses/gpl.html>

The bash version did not matched the fixed ones, anyways to test if you are affected you can run on a terminal the code below, if both lines are showed, then it is affected.

# env X="() { :;} ; echo busted" `which bash` -c "echo completed"
busted
completed

I found a fix at ShellShocker and it was as easy as running the snippet below (although I would not recommend executing remote scripts, it is not a good practice), but if you are curious about what it does, or you want to run this yourself, the sources are also listed below.

curl https://shellshocker.net/fixbash | sh

After running the script the bash has been patched and the shellshock test now ommits the "busted" line.

# bash --version
GNU bash, version 4.3.30(1)-release (i586-pc-linux-gnu)
Copyright (C) 2013 Free Software Foundation, Inc.
License GPLv3+: GNU GPL version 3 or later <http://gnu.org/licenses/gpl.html>

Sources:


Fix EXT2 ext2_lookup deleted inode referenced

Deleted inodes are a common problem when working with SD cards, specially noticeable in ALIX-bsaed boards running Voyage or alike.  Remove the SD, connect as an external drive to your host (I'm connecting to an Ubuntu-based VM) and do the following:

$ sudo fdisk -l

Disk /dev/sda: 16.1 GB, 16106127360 bytes
255 heads, 63 sectors/track, 1958 cylinders, total 31457280 sectors
Units = sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk identifier: 0x000cb32b

   Device Boot      Start         End      Blocks   Id  System
/dev/sda1   *        2048    28350463    14174208   83  Linux
/dev/sda3        28352512    31457279     1552384   82  Linux swap / Solaris

Disk /dev/sdb: 3997 MB, 3997163520 bytes
128 heads, 63 sectors/track, 968 cylinders, total 7806960 sectors
Units = sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk identifier: 0xfc8a205c

   Device Boot      Start         End      Blocks   Id  System
/dev/sdb1   *           1     7370495     3685247+  83  Linux


Identify your disk using the information above, then check and repair the file system using e2fsck, when prompted you can comply with the suggested fix by pressing "y".  This should be the output if no errors are found.

$ sudo e2fsck -f /dev/sdb1
e2fsck 1.42 (29-Nov-2011)
Pass 1: Checking inodes, blocks, and sizes
Pass 2: Checking directory structure
Pass 3: Checking directory connectivity
Pass 4: Checking reference counts
Pass 5: Checking group summary information
ROOT_FS: 121871/230608 files (2.0% non-contiguous), 807088/921311 blocks

Tuesday 2 December 2014

Disable 6lbr to be launched at boot

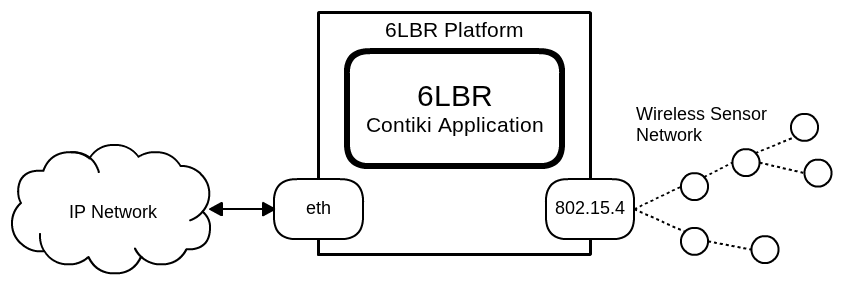

I luckily found out 6lbr some months ago (I have an unfinished post about it yet to finish, loving foren6 also), but I needed to stop the service to be launched from boot while I did some testing.  As I didn't found any configuration tweak to do so, I disabled the service at all /etc/rcX.d run levels using the well known update-rc.d script.

update-rc.d -f 6lbr remove

To enable back:

update-rc.d 6lbr defaults

And business as usual.

Monday 1 December 2014

Stop the LG SmartShare service to be launched at boot (Windows 7)

Short story: LG SmartShare DLNA media sharing service was slowing down Windows boot abnormally, and the built-in settings do not provide the polite option to disable launching the application at boot.  After checking the usual suspects (msconfig and Startup folder), I found where the SmartShare task was being scheduled.


Just go to the Administrative Tools menu and open the Task Scheduler.

Sunday 30 November 2014

IoTogether Hackaton 2014: IoT loving with the LoveTotem


 IoTogether was a competition event for 7-8 co-located teams in Trento and Barcelona. Remote teams will be composed by participants from both sides who will be asked to interact via Future Internet videoconferencing tool provided by the SPECIFI project.

Sponsors: SPECIFI, COMPOSE and VISIONAIR.
Partnership: CREATE-NET, MuSe, BCNLab, I2CAT and the City of Barcelona.
***

The idea was as freaky as it could get, is a lot funnier to start explaining our team concept from the prototyping stage up to the final application...

At the Barcelona location we implemented a force sensor with a 3-axis accelerometer integrated to a wool glove, to measure both force of impact, movement and acceleration, displayer over a LED bar for our viewing pleasure, hooked up with a GSR (Galvanic Skin Response) sensor to measure the "arousal" level of its wearer.  To interface the sensors we used an Arduino bundled with a WiFI module, to send the sensed data over Glue.Things to the Trento location.

We did also manage to send data to Ubidots and The Things.IO.


At Trento side there was a dildo-shaped lamp (yes, a dildo), changing colors according to the data received from the glove by selectively turning RGB LEDs, using force, acceleration, arousal and muscular response data... well, you know, leave it to the Italians to sex-it up a Hackaton :)

One of the main challenge of the event was actually to set up everything from each side while talking to each group, unfortunately the co-location resources went bad and we ended up talking over Skype, and emulating both input and outputs isolated, but at the end we were glad it worked out.




The official name of the project was "The LoveTotem", to be honest the horny lamp would be a better name, but regardeless the name of the actual use case, what was interesting about the project, and the event, was to put a bunch of people together, with the right tools and attitude, and create something, whatever, as long as it works, you cannot save the world with a killer app in 4 hours, but building "anything" is the first step to get more stuff rolling... who knows? everything can be reused and interpreted in many different ways, with a different angle this would also make a good physical rehabilitation tool, a social game to take introverts into social engaging with physycal interaction with others, nnevertheless, I loved the lamp challenge... it was so out of my field that it was cool to try to design a matching application to feed love to the Totem.

 This was the official description of the project:
"LoveTotem": Suppose you are too far from your sweetheart and you want to know how really he/she feels, or share emotions without talk! Your partner can wear the LoveSensors: when you'll turn on your LoveTotem, you'll see it take strong/hot color if your partner is excited, or soft blue light if is relaxed. Love Totem uses an open hardware platform (Arduno Yun) and human sensors like (Muscle sensor,Temperature/Humidity, GSR) in order to track the state of a person and transmits these data through dedicated API to a cloud platform (GlueThings). On the other side, another Love Totem will retrieve these data, representing them with a mix of some colored leds. Leds are placed in a lamp, which we have designed and made using a laser cutter and a 3d printer.
At the end our team was one of the two winning teams of the event, with a caveat: the team members posted at SPECIFI site is wrong, Barcelona's team members are swapped with other team (Aitor is actually a colleague of work, but at a different group), the correct line-up is the following: Andrés Hernández Casaus, Hector Esteller, Pablo Carbajal and yours truly.

We got plenty of goodies, including Spark Cores for each of the members, sensors (I got a soil moisture sensor, the GSR and a couple of buzzers), along with a Shield-Shield.

Here is the full list of the developed projects:
  1. "SeeTy": a urban garden community that merges gardens around the world.
  2. "LoveTotem": a lamp to express remote feelings for lovers.
  3. "WineCheck": check wine bottles temperatures on your smartphone.
  4. "Remote Interactive House Control": remote management of houses temperature & humidity.
  5. "EmotionalBag": a bag monitoring and displaying its user's emotional status.
  6. "SmartGlove": a glove that senses the heart beat and the level of stress.
  7. "BluePresence": a smartwatch managing smartlights with power consumption profiling.
  8. "CarFinder": cars tracking on the web with GPS sensor.
If you ever stumble upon a Hackaton organized by the same people behind IoTogether, be sure to attend, besides the good folks assisting the event, and the electronic goodies, the food was sincerely amazing, no cold pizzas and warm beers, a full-catered event with food coming and going at the pace of cold beer and hot coffee, just what a maker needs.

Saturday 29 November 2014

Clean-up unused Linux Kernels in Ubuntu

Original article by Mark McBride

At development I tend to keep more than one Virtual Machine sandboxes, normally Unix-based running on a Windows host (because of reasons), so from time to time I have to clean-up the garbage and maintain the user-disk cuota as low as possible to avoid eating up the VM drive.

The original author makes a pretty good explaination on the command sintaxis (basically list the kernels and strip-down recursively to usable name strings to uninstall them), so I'm just going to copy here the actual command:
dpkg -l 'linux-*' | sed '/^ii/!d;/'"$(uname -r | sed "s/\(.*\)-\([^0-9]\+\)/\1/")"'/d;s/^[^ ]* [^ ]* \([^ ]*\).*/\1/;/[0-9]/!d' | xargs sudo apt-get purge

Only one caveat: I removed the -y argument from the apt-get purge command to avoid eliminating automatically, instead you will get prompted to purge the listed kernels.  To check the used disk space:

$ du -h /boot --max-depth=0

Network Printer with CUPS in a Raspberry Pi

Short story: I was tired of having to skpe or mail files to the secretary for her to print it in my behalf,  and working in a highly tech-oriented company, it was embarrasing, so the Raspberry Pi came to the rescue once again...

Sources:

Bartbania
Libre Geek

Install CUPS:

sudo apt-get install avahi-daemon cups cups-pdf python-cups
Once installed (it will take a while) add our user to the lpadmin group, in this case I'm assuming the default user "pi".

sudo usermod -a -G lpadmin pi

Install Samba and dependencies to make the Printer accessible over the network:

sudo apt-get install samba libncurses5-dev bridge-utils

Then edit the configuration file to enable network printing and sharing the printer, below are the most interesting lines in my configuration file:

pi@raspberrypi ~ $ sudo cat /etc/cups/cupsd.conf

# Allow remote access
Port 631

# Enable printer sharing and shared printers.
Browsing On
BrowseOrder allow,deny
BrowseAllow all
BrowseRemoteProtocols CUPS dnssd
BrowseAddress 192.168.1.255
BrowseLocalProtocols CUPS dnssd
DefaultAuthType Basic
WebInterface Yes
ServerName 192.168.1.28

<Location />
 Order Deny,Allow
 Deny From All
 Allow From 127.0.0.1
 Allow From 192.168.1.*
</Location>

<Location /admin>
  Order allow,deny
  Allow @Local
</Location>

<Location /admin/conf>
  AuthType Default
  Require user @SYSTEM
  Order allow,deny
  Allow @Local
</Location>

Then either reboot the Raspberry Pi or restart CUPS:

sudo service cups restart

And that should be all, next we need to add the printer connected to the Raspberry Pi over the USB port, the process should be straight-forward.  The CUPS driver provides a webserver accessible over the socket specified by the RPi's IP and Port assigned in the cupsd.conf file.



Install Java JDK in Ubuntu

I recently had to install Java to be able to run Cooja properly, as surely I'm going to need this at any given moment when reinstalling, testing elsewhere, etc, I'm keeping the instructions here.

Taken from Ubuntu Guia.

Install Java Oracle version 8:

sudo add-apt-repository ppa:webupd8team/java
sudo apt-get update
sudo apt-get install oracle-java8-installer

Check the current version

$ java -version
java version "1.8.0_25"
Java(TM) SE Runtime Environment (build 1.8.0_25-b17)
Java HotSpot(TM) Server VM (build 25.25-b02, mixed mode)


You can select between any installed Java version at any given time

$ sudo /usr/sbin/update-alternatives --config java

There are 4 choices for the alternative java
  Selection    Path                                           Priority   Status
------------------------------------------------------------
  0            /usr/lib/jvm/java-8-oracle/jre/bin/java         1063      auto mode
  1            /usr/lib/jvm/java-6-openjdk-i386/jre/bin/java   1061      manual mode
* 2            /usr/lib/jvm/java-8-oracle/jre/bin/java         1063      manual mode
  3            /usr/lib/jvm/jdk1.8.0/bin/java                  1         manual mode
  4            /usr/lib/jvm/jre1.7.0/jre1.7.0_51/bin/java      0         manual mode
Press enter to keep the current choice[*], or type selection number:

Senzations 2014 IoT school and City Karma


I recently was lucky enough to attend Technical track of Senzations 2014 Summer School hosted in Biograd na Moru, Croatia.  It was an incredible experience traveling to Croatia, without taking merits to the event itself, one of the things I enjoyed the most was the City experience, and of course the Boat trip to the National Park Kornati.

The lecturers were great and gave plenty of insights on both Wireless Sensor Networks, M2M and IoT,and shared their current work on the field, most of the slides are available at the Program website, but I though about sharing some of the presentation links below:


As Intel was supporting the event, there were plenty of Intel Galileo development kits to use to prototype our very own IoT-driven applications, the core of the event: divide into teams and create an IoT application from the prototype to the business plan.  Here's mine with plenty of Grove sensors from SeeedStudio attached in the prototype phase.



Our team, the DreamTeam, scored big time and was one of the winners of the 4-days Hackaton with our project: City Karma, which had its own dorky video as well! The main idea was to target the lack of social awareness in cities, and City Karma was born:

A big shout to the DreamTeam: Berta Jadro, Adela Sockovic, Bruno Dunaj, Nikola Paic, Ivan Jokic, Stevan Jokic




The application was implemented using a Python script running in the Galileo Board, monitoring 3 types of events: loud scream for help, emergency button and assistance button, then posting a Twitter message indicating the location of the event, type and date, with a randomly generated Karma Code.  A person following the #CityKarma hashtag or the CityKarma twitter account then could see the new event, and could reply the Twitter message to inform the person in distress that help its on its way.

A mobile application would also allow to flash this alert to the screen, by monitoring the City Karma feed and using the user location to see if the user is nearby.


Then the helping hand would get Karma Points, plenty useful to show off and maybe get a free expresso or a discount in affiliated partners, maybe a nice tax reduction? what would it take for you to go out of your way and help a stranger?  Could you ignore a person nearby you asking for help? Let's hope the people frequenting this blog are natural Karma sponges, if not remember this:
When you carry out acts of kindness you get a wonderful feeling inside. It is as though something inside your body responds and says, yes, this is how I ought to feel. - Harold Kushner
The application was powered by MQTT over WiFI/GPRS, using a local Node-RED server to receive the help message, parse and post it to Twitter, and also to track the Twitter feed for responses, posting an update on the MQTT topic to notify the person in distress that his help request has been answered, by means of a LED notification.



If you want to take a peep at the code it is uploaded in my Github, keep in mind this is not production-ready code and was done only as a proof-of-concept.

To wrap this up, I'm really looking forward to next year event, I hope I can assist as both a participant or a lecturer, it was an incredible gathering of talent and knowledge, and a fun crowd to hang out.  A big thanks to Srdjan Krco (DunavNET) for organizing the event, Alex Gluhak (Intel Labs) for rolling out the hackaton and providing the equipment and tech support, and Charalampos Doukas/Jan Pernecky for the memories.



The presentation videos are available at Senzations YouTube channel

Setting up CSS Uniflash to program the CC2538DK in Contiki

When I first started trying-out setting Uniflash to work with the CC2538DK and Contiki, I stumbled upon this warning:

I first tried Uniflash v3.1.0.00026 with no luck, so I downgraded to version v2.2.00016, you might want to skip the next section as it mostly describes the pain and futility of my first attempts with the latest Uniflash version, mostly kept as a warning of the severed-head-on-a-pike type for others encountering the same errors, and maybe lurking a kind soul who has fought this monster and prevailed, willing to share the solution.

At the end the solution was to find the right combinations of magic ingredients:

The right CCXML recipe:

<?xml version="1.0" encoding="UTF-8" standalone="no"?>
<configurations XML_version="1.2" id="configurations_0">
    <configuration XML_version="1.2" id="configuration_0">
        <instance XML_version="1.2" desc="Texas Instruments XDS100v3 USB Emulator" href="connections/TIXDS100v3_Dot7_Connection.xml" id="Texas Instruments XDS100v3 USB Emulator" xml="TIXDS100v3_Dot7_Connection.xml" xmlpath="connections"/>
        <connection XML_version="1.2" id="Texas Instruments XDS100v3 USB Emulator">
            <instance XML_version="1.2" href="drivers/tixds100v2icepick_c.xml" id="drivers" xml="tixds100v2icepick_c.xml" xmlpath="drivers"/>
            <instance XML_version="1.2" href="drivers/tixds100v2cs_dap.xml" id="drivers" xml="tixds100v2cs_dap.xml" xmlpath="drivers"/>
            <instance XML_version="1.2" href="drivers/tixds100v2cortexM.xml" id="drivers" xml="tixds100v2cortexM.xml" xmlpath="drivers"/>
            <property Type="choicelist" Value="4" id="The JTAG nTRST Boot-Mode"/>
            <property Type="choicelist" Value="4" id="The Power-On-Reset Boot-Mode"/>
            <property Type="choicelist" Value="2" id="The Converter Usage"/>
            <platform XML_version="1.2" id="platform_0">
                <instance XML_version="1.2" desc="CC2538SF53" href="devices/cc2538sf53.xml" id="CC2538SF53" xml="cc2538sf53.xml" xmlpath="devices"/>
            </platform>
        </connection>
    </configuration>
</configurations>

The right CSS Uniflash version (mine was 3.1.0.00026).

And finally the right flashing command:

contiki/examples/cc2538dk$ sudo /opt/ti/uniflash.sh -ccxml /opt/ti/CC2538SF53.ccxml -operation Erase -program cc2538-demo.elf

Then the magic starts:

***** Texas Instruments Universal Flash Programmer *****
<START: 19:19:29 GMT+0100 (CET)>
> Configuring the Flash Programmer with the given configuration ...
> Flash Manager is configured for the following part: CC2538SF53
> Connecting to the target for Flash operations ...
> Connected.
> Performing operation: Erase
> Completed current operation.
> Loading Program: cc2538-demo.elf
> Finish Loading.
> Disconnecting from target.
Cortex_M3_0: GEL Output: CPU Reset.
<END: 19:19:56 GMT+0100 (CET)>
<Operation Time: 19.341s>
<Total Time: 27.662s>

This is not my preferred way to flash the CC2538DK, as now with the bootloader backdoor unlocked it is possible to program the devices over UART using the built-in bootloader BSL script, but there may be cases in which you accidentaly flash an image with the backdoor unlocked, and need to enable this again.

Create a GIT sandbox server for ad-hoc work

Some months ago I was working out of the office at a client's location and I had to move my development environment there, but due to a tight and restrictive IT policy, me a some colleagues were unable to set up our current GIT repository and share our work (the proposed zip-share-meld was not tempting at all...).  The easiest solution would be to host the repository on my laptop, but then again, setting up our GIT repo in a Raspberry Pi is more fun, specially when you have a video projector available at the office, and a RetroPie running with 2 extra game controllers.

Create a fresh bare repository on the server:
git init --bare newrepo.git
Add it as a remote in our local repo:
git remote add newrepo  git://user@server.com/newrepo.git
Push all branches:
git push --all newrepo

Wednesday 23 July 2014

Quick note: Raspberry Pi WiFI client configuration (tested with ralink RT5370)

I recently purchased a WiFi dongle as the new addition for my Raspberry Pi, this cheap and amazing piece of work from ebay is a 150M USB WiFi Wireless Adapter LAN, with a 2dBi de-attachable Antenna and the well-known ralink rt5370 Chip, for only 3€ (at the purchase time) what else could you ask for?


OK, it took a while to arrive to Spain as it was sent from China, but the product was worth the wait!



Not only worked flawlessly with the Raspberry Pi (mine is mounted on the wall next to my desk, sometimes I put it behind my monitor as the enclosure is VESA-compatible, see previous post), but also worked out-of-the-box for my LG 47LA640S Smart TV, saving me from having to buy an "official" overpriced WiFI USB dongle (30€, 6 times the value!) or adding yet-another wireless router to connect my TV over ethernet.

To enable the Raspberry Pi to connect to an AP with a static IP address, just add this to your /etc/network/interface file:

allow-hotplug wlan0

auto wlan0


iface wlan0 inet static
address 192.168.1.232
netmask 255.255.255.0
gateway 192.168.1.1

dns-nameserver 8.8.8.8


wpa-ssid "SSID-example-replace-yours-here"

wpa-psk "replace-your-WPA-password"

This will work as long as your AP has WPA/WPA2 security and is not hidden.

A 3D printed Raspberry Pi VESA mount

The Barcelona Activa folks at the Parc Tecnològic Barcelona Nord has opened a 3D printing space, available for the lucky people working in its facilities, featuring the amazingly cheap and cool BCN3D+ printer and the well-known MakerBot.

After a quick lessonand browsing through Thingiverse, I quickly found that the Raspberry Pi was a hot item with plenty of designs available to further enhance the Rpi experience,so I took this thing (a VESA-mount enclosure for the Raspberry Pi) and did a quick test ride.

There are plenty of tutorials and available free available software on 3D printing, so I'm going to skip this and leave a 3D printing walkthrough for a future post.

I ran the .STL file over the GCode Analyzer to see how my case was to be printedand how much time will it take to print (about 2 hours, just the case without the top-lid), and then copy the GCODE into a SD card, put it in the BCN3D+, calibrate (grumble, grumble), and the result is shown below.







The Raspberry Pi fits quite nice in the enclosure, I only had to remove a loose thread or two to connect the HDMI connector, I have not printed the top-cover as I intend to connect many things to the device, so I'm not sure yet what space should I leave for the cabling and maybe use the cover as a base mount for a sensor, etc.

I'm planning on sticking the Rpi behind my monitor and avoid seeing all the cables on top of my desk, also it serves OK to hang on a wall... good thing is that the Raspberry fits in the enclosure, but with little effort it can be pulled off, allowing a quick swap.

Wednesday 25 June 2014

How to fix GIT error: object file is empty (from Stack Overflow)

Source (and all credits):
Stack Overflow: how to fix git error object file is empty

This saved me from a lot of googling and trial/error, I was getting the following error:

error: object file .git/objects/31/65329bb680e30595f242b7c4d8406ca63eeab0 is empty
fatal: loose object 3165329bb680e30595f242b7c4d8406ca63eeab0 (stored in .git/objects/31/65329bb680e30595f242b7c4d8406ca63eeab0) is corrupt


Maybe caused by powering off my VM sandbox while syncing or some other weirdness, normally with a very low impact as you can always do a git clone, but as I had some changes done locally on my working branch that I didn't want to miss/re-do, this saved my day. The original answer with full comments can be found at the link above, the brief version is:

cp -a .git .git-old
git fsck --full
# Remove empty files by using "rm", continue until none is left and the "missing blob" starts showing
git reflog
# It will show "fatal: bad object HEAD"
tail -n 2 .git/logs/refs/heads/master
# Identify parent of last commit (the one HEAD is pointing to), easily recognizable as it will show up twice
git show commit_parent
git update-ref HEAD commit_parent
git fsck --full
# There are some blobs left from outdated index, nuke and carry on
rm .git/index
git reset
# There should be only references to "dangling blobs", these are not errors, continue
git status
git add .
git commit -m "Recovering from lost objects"
And done.

Tuesday 17 June 2014

Enabling USB audio card in Raspberry Pi

The Raspberry Pi has an on-board audio jack, but the on-board audio is generated by a PWM output with little filtering done, but the sound quality, volume, and recording capabilities can be added by using a USB sound card (these are pretty cheap too).

I bought 4€ USB sound card from Amazon, but pretty much any other can be used, it has a stereo output and has a MIC input, which is perfect for voice-controlled projects (like the one I'm currently working on, remember Jarvis?).  The audio card features an USB 2.0 type A connector and it powers up from the USB 5VDC power supply.  I have not measured the current consumption (yet).


Preparing the installation


I'm running Raspbian-based RetroPie on a USB stick, the following should not change anything from your configured settings, however this installation can be done on any Raspbian-based images.
sudo apt-get update
sudo apt-get upgrade

After 5-10 minutes you should have your OS upgraded and ready to go.


Recognizing the USB audio card


Sources:

ALSA driver by default does not allows the USB audio card to be sound device #0 (default), to change this we need to edit the /etc/modprobe.d/alsa-base.conf (as sudo) and change the following line (normally commented-out):

#options snd-usb-audio index=-2

Remove the comment and change index to 0

options snd-usb-audio index=0

After rebooting or restarting ALSA, the audio card should be listed as the default sound device.

As pointed out in Adafruit, there are different supported chipsets, mine was a C-Media based (CM108).


pi@raspberrypi ~ $ dmesg | grep C-Media
3.352853] usb 1-1.2: Manufacturer: C-Media Electronics Inc.
3.370053] input: C-Media Electronics Inc.
USB PnP Sound Device as /devices/platform/bcm2708_usb/usb1/1-1/1-1.2/1-1.2:1.3/input/input0
3.386302] hid-generic 0003:0D8C:013C.0001: input,hidraw0: USB HID v1.00 Device [C-Media Electronics Inc.
USB PnP Sound Device] on usb-bcm2708_usb-1.2/input3
pi@raspberrypi ~ $ lsusb
Bus 001 Device 002: ID 0424:9512 Standard Microsystems Corp.
Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 001 Device 003: ID 0424:ec00 Standard Microsystems Corp.
Bus 001 Device 004: ID 0d8c:013c C-Media Electronics, Inc. CM108 Audio Controller
Bus 001 Device 005: ID 125f:c13a A-DATA Technology Co., Ltd.
pi@raspberrypi ~ $ cat /proc/asound/cards
0 [Device]: USB-Audio - USB PnP Sound Device
C-Media Electronics Inc. USB PnP Sound Device at usb-bcm2708_usb-1.2, full spee
1 [ALSA]: BRCM bcm2835 ALSbcm2835 ALSA - bcm2835 ALSA bcm2835 ALSA
pi@raspberrypi ~ $ aplay -L
Discard all samples (playback) or generate zero samples (capture)
sysdefault:CARD=Device
USB PnP Sound Device, USB Audio
Default Audio Device
front:CARD=Device,DEV=0
USB PnP Sound Device, USB Audio
Front speakers
surround40:CARD=Device,DEV=0
USB PnP Sound Device, USB Audio
4.0 Surround output to Front and Rear speakers
surround41:CARD=Device,DEV=0
USB PnP Sound Device, USB Audio
4.1 Surround output to Front, Rear and Subwoofer speakers
surround50:CARD=Device,DEV=0
USB PnP Sound Device, USB Audio
5.0 Surround output to Front, Center and Rear speakers
surround51:CARD=Device,DEV=0

USB PnP Sound Device, USB Audio
5.1 Surround output to Front, Center, Rear and Subwoofer speakers
surround71:CARD=Device,DEV=0
USB PnP Sound Device, USB Audio
7.1 Surround output to Front, Center, Side, Rear and Woofer speakers
iec958:CARD=Device,DEV=0
USB PnP Sound Device, USB Audio
IEC958 (S/PDIF) Digital Audio Output
sysdefault:CARD=ALSA
bcm2835 ALSA, bcm2835 ALSA
Default Audio Device
pi@raspberrypi ~ $ arecord -l
**** List of CAPTURE Hardware Devices ****
card 0: Device [USB PnP Sound Device], device 0: USB Audio [USB Audio]
 Subdevices: 1/1
 Subdevice #0: subdevice #0

The last step is adding the following configuration to the asound.conf file, used by ALSA.
pi@raspberrypi ~ $ cat /etc/asound.conf
pcm.!default {
 type plug
 slave {
   pcm "hw:0,0"
 }
}
ctl.!default {
 type hw
 card 0
}

Testing the setup

I have hooked the USB audio card with a TPA2005D1 audio amplifier (roughly 6€) from Sparkfun and a 0.5 Watt  magnetic speaker.  I have to work on the sound quality to reduce some noise, change the audio amplifier's resistors to increase the gain, maybe throw in a potentiometer to allow changing the volume, and use speakers with a higher wattage.


To test the installation we can use the built-in functions provided by the OS.
pi@raspberrypi ~ $ speaker-test
speaker-test 1.0.25
Playback device is default
Stream parameters are 48000Hz, S16_LE, 1 channels
Using 16 octaves of pink noise
Playback open error: -16,Device or resource busy
Had to close the emulationstation scripts running, then I was able to hear the sound:


pi@raspberrypi ~ $ speaker-test -c2 -D hw:0,0
speaker-test 1.0.25
Playback device is hw:0,0
Stream parameters are 48000Hz, S16_LE, 2 channels
Using 16 octaves of pink noise
Rate set to 48000Hz (requested 48000Hz)
Buffer size range from 96 to 262144
Period size range from 48 to 131072
Using max buffer size 262144
Periods = 4
was set period_size = 65536
was set buffer_size = 262144
0 - Front Left
1 - Front Right
Time per period = 5.564981
0 - Front Left
1 - Front Right
Time per period = 5.559085
0 - Front Left
1 - Front Right
And to test the recording I just connected a detachable mic from a headset.
pi@raspberrypi ~ $ arecord -d 10 test.wav
Recording WAVE 'test.wav' : Unsigned 8 bit, Rate 8000 Hz, Mono
^CAborted by signal Interrupt...

$ aplay test.wav
Playing WAVE 'test.wav' : Unsigned 8 bit, Rate 8000 Hz, Mono

Wednesday 28 May 2014

How to generate source code documentation in TinyOS (nesdoc)

TinyOS uses Nesdoc to generate documentation from source code (as Doxygen does), to build the documents (found later in $TOSROOT/doc folder under your platform name) just type (and replace with your platform's name):
make platform docs
This should go smoothly but... there are small things to tweak, for example:

error: StorageVolumes.h: No such file or directory
If you include the STM25P component (external flash memory support), if fails locating StorageVolumes.h file, as this file is generated in build time from the definitions in your platform's target file (at tos/support/make):

VOLUME_FILE = volumes-stm25p.xml
VOLUME_ALLOCATOR ?= tos-storage-stm25p
One quick work-around is to previously build the application and then copy the generated StorageVolumes.h file from the resulting build/platform location to your application path, then run the make docs command again.

I did found the following errors:

Traceback (most recent call last):
  File "/usr/lib/tinyos/nesdoc/archive.py", line 352, in <module>
    doc.writexml(ifile)
  File "/usr/lib/python2.7/xml/dom/minidom.py", line 1751, in writexml
    node.writexml(writer, indent, addindent, newl)
  File "/usr/lib/python2.7/xml/dom/minidom.py", line 816, in writexml
    node.writexml(writer, indent+addindent, addindent, newl)
  File "/usr/lib/python2.7/xml/dom/minidom.py", line 816, in writexml
    node.writexml(writer, indent+addindent, addindent, newl)
  File "/usr/lib/python2.7/xml/dom/minidom.py", line 816, in writexml
    node.writexml(writer, indent+addindent, addindent, newl)
  File "/usr/lib/python2.7/xml/dom/minidom.py", line 816, in writexml
    node.writexml(writer, indent+addindent, addindent, newl)
  File "/usr/lib/python2.7/xml/dom/minidom.py", line 812, in writexml
    self.childNodes[0].writexml(writer, '', '', '')
  File "/usr/lib/python2.7/xml/dom/minidom.py", line 1040, in writexml
    _write_data(writer, "%s%s%s" % (indent, self.data, newl))
  File "/usr/lib/python2.7/xml/dom/minidom.py", line 297, in _write_data
    writer.write(data)
UnicodeEncodeError: 'ascii' codec can't encode characters in position 244-245: ordinal not in range(128)


Just edit archive.py (see error log for details on its location and change:
--- /usr/lib/tinyos/nesdoc/archive_old.py
+++ /usr/lib/tinyos/nesdoc/archive.py
@@ -1,4 +1,5 @@
 # -*- python -*-
+# -*- coding: utf-8 -*-
 # Copyright (c) 2005 Intel Corporation
 # All rights reserved.
 #
@@ -43,6 +44,7 @@
 from nesdoc.graph import generate_graph
 from nesdoc.html import *
 import os
+import codecs

 def check(x):
   if not x:
@@ -292,7 +294,7 @@
       refd.appendChild(qnameidx[qname].cloneNode(True))
     doc.appendChild(copy)
-    ifile = file(filename, "w")
-    doc.writexml(ifile)
+    ifile = file(filename, "wb")
+    doc.writexml(codecs.open(filename, 'wb', 'utf-8'), encoding='utf-8')
     doc.unlink()
     ifile.close(

And this one:

Traceback (most recent call last):
  File "/usr/lib/tinyos/nesdoc/genhtml.py", line 96, in <module>
    generate_component(ixml.documentElement)
  File "/usr/lib/tinyos/nesdoc/components.py", line 91, in generate_component
    ht.pdoc(idoc)
  File "/usr/lib/tinyos/nesdoc/html.py", line 149, in pdoc
    self.p(self.escape_email(val))
  File "/usr/lib/tinyos/nesdoc/html.py", line 51, in p
    self.f.write(s)
UnicodeEncodeError: 'ascii' codec can't encode characters in position 2-3: ordinal not in range(128)

As done above, edit the html.py file with the following:

--- /usr/lib/tinyos/nesdoc/html_old.py
+++ /usr/lib/tinyos/nesdoc/html.py
@@ -48,7 +48,7 @@
     if self.at0:
       self.f.write(" " * self.ind)
       self.at0 = False
-    self.f.write(s)
+    self.f.write(s.encode('utf-8'))

   # print a string and end the line
   def pln(self, s):

Afterwards the documentation can be viewed and navegated through by browsing the generated index.html file at $TOSROOT/doc/nesdoc/platform:

Nesdoc output: components, interfaces and wirings

Sunday 25 May 2014

Stumbled on (2): What most Schools don't teach

I wasn't able to post anything last Sunday due to my daughter's birthday, so this week stumbling upon arrives a bit late, anyway today I found a video interesting to show to non-coders and specially to parents and youngsters: this new world is more about bits than atoms, coding and programming it is not reserved only to Computer Science majors, but to anyone willing to learn... sadly neither my school or college taught me how to code, so I was a late bloomer and an autodidact (now I code for a living), perhaps the video below can give you more reasons to start early.

What most Schools don't teach (core.org)

Some of the biggest names in tech and Hollywood have joined forces in a new video for Code.org, a non-profit focused on computer programming education, to encourage students to take coding classes.

First stumbled by Alicia1321.
Source: Code.org

Monday 12 May 2014

Using Telecom Design's TD120x as a SIGFOX gateway with a Z1 mote


As mentioned in an earlier post, I recently got a demo kit from SIGFOX and finally I had some time to start playing with.

I had a head start and told that the starter kit was based on Telecom Design TD1204, which provides a serial AT-based modem to allow communication over a serial link, so it made easier testing using software tools like PuTTY, Hercules and then moving to a Zolertia Z1 mote to drive the TD1204 over its serial port (at the end of the post!).

Note: You need to have a device registered in the TelecomDesign cloud or the SigFox backend for some of the following steps, but nevertheless is is interesting to watch and to take a peep inside.



SIGFOX Back-end


I started by browsing the web-based SIGFOX backend, by clicking on the Device tab (as shown below) we can see the devices associated to our account, my starter kit device appears listed there.



I work in Barcelona, so I was interested in checking if my workplace is under SIGFOX coverage area, so by clicking the Location tab at the left it is shown an approximate coverage map.  (btw, I have tried pushing a message while at home in Cerdanyola del Vallès, but it didn't reach the network, but generally in Barcelona the coverage is OK).  At first glance it made more sense to me to represent the light blue area as a circle rather than using a square, but as I'm not sure of how this is modeled, it is fine as it is at the moment.


 Then the moment of truth, let's see what happens when I long-press-and-hold the button... once or twice to be sure, the message board is updated showing the content of the test message... I don't understand what the data means (180c62, 190c62), but I have a good idea about the rest of the fields...


  • Delay: Time (in seconds) elapsed since the message was triggered and then received by the network station.
  • TAP: Station receiving the message, as these stations are fairly identified you can get the estimated location of your device (a way estimated location).
  • RSSI: Received Strength Signal Indication: as shown we have values ranging from -124/-128dBm, as it was already discussed in my previous post, the sensitivity value is expected to be quite low, as the wireless range is favored by the low data rate and bandwidth.  In the  TD1204 EB page the sensitivity value is stated to be close to -126dBm, as we are using a 5dBi external antenna we can expect a boost (in one occasion I got a RSSI value of -132dBm, so this approximation seems to be OK).
  • Signal (dB)
  • Freq (MHz): channel used in the transmission, as shown above the channel is changed for every retransmission attempt.
  • Rep: Numbers of retransmission attempts needed for the packet to actually arrive to the network.
  • Callbacks: Event triggered upon receiving the packet, below is an example of the callback generated by the user-button event (an email is sent every time to a given email address):
          [OK] - TAP 0146 - 1 second
     200 -
     {device} (name@mail.com)

The maximum transmission power of the radio transceiver is 14dBm (for the TD1204 DK), but it would be interesting to check if SIGFOX allows devices to be on the ETSI G3 sub-band (869.4-869.65 MHz 500mW), one thing pending to confirm (in my previous post I assumed so).



Hands-on: connecting SIGFOX to a Z1 mote


So OK, enough of using the user button and the backend (we will return to this later when setting callbacks and stuff), now let's move to the meaty part of the testing: sending a custom string message.  After checking the TD 1204 reference manual, I found the required serial settings to connect the starter kit to the PC:
  • Speed 9600 bps.
  • 8 data bits.
  • 1 stop bit.
  • No parity, no hardware/software flow control.
I first tested the serial communication using Hercules and the result was OK as expected (remember to add a carriage return at the end of the string, more information about the command/response expected format is found in the TD1204 reference manual, section 2.4).

.

After verifying the serial communication then I moved to wiring the starter kit to the Z1 mote.

At first It seemed a good idea to cut-off the male USB connector of an USB male to mini-USB cable, strip the wires and solder those to the Z1 mote, wiring D+/D- to the UART1's RX/TX (P3.7/P3.6), and power the starter kit by soldering GND/VCC to the Z1's USBGND/USB+5V (requiring to power the Z1 through its micro-USB port)... but this was a rather bad idea, as I noticed when connecting the TD1204 to the PC that it uses a FTDI chip, which are normally slaves thus requiring a master to communicate.  The Z1 mote has a CP210x serial-to-USB converter too, but my original intention was to use raw serial communication using a free UART port of the Z1 mote, so its USB port (wired to UART0) can be kept as a programming/debugging port, avoiding to use the JTAG port instead.


So the next logical step (off course, without a doubt) was to void the warranty and take a peek inside the demo kit... I love voiding warranties :-)

Finding the FTDI reference (FT232R-L package) chip was easy, as suspected there's a battery charger/Modem enabling circuit, a 1000mAh LiPo battery and the user button on one side, on the other we can see a TD1202 radio transceiver and AT-modem (sending an AT&V command is also a good way to find out about board-specifics).




Next I needed to locate the serial RX/TX lines going to the TD1202 transceiver to bypass the FTDI, following the FTDI pin-out and the PCB trace I noticed there were 2 0Ohm resistors standing between the FTDI and the modem, a nice gesture as it only required to apply a little heat and lift-up the resistors instead of cutting the PCB.

The location of the RX (red), TX (white) and GND (black) pads are shown above, as well as the location of the resistors.  We cross-wired the Z1 and TD1202 RX/TX lines, and the DGND pin of the Z1 to GND.


I could also directly power the TD1202 using the Z1's 3.3V power reference, but honestly I was more interested in testing the communication between the Z1 and the board, than worrying about how to power the device, so I kept using the mini-USB port to power up the TD1202 through the 5V delivered by the Z1 connected via USB as shown below... a work to be done later is to replace the LiPo battery with one that has a larger capacity, and hook it up to a solar panel, but that's material for another post.



I used a logic analyser to verify the communication between the Z1 and the TD1202 was OK, and programmed the Z1 mote using TinyOS with a simple serial test sending an AT\n command every second, hoping to receive the AT command echoed back and an OK from the AT-modem, the result is shown below.


Here's the snippet of code used for the test.  The TMP102 temperature sensor callback event is shown on purpose, it will be used later to forward temperature readings from the mote.


Maybe someday I'll write a driver in Contiki/TinyOS to allow a more flexible and API-like way to communicate with the TD120x, or just port my sub-1GHz based mote to native support SIGFOX, but for preliminary testing sending raw strings is acceptable.

As the serial communication is asserted I can dump now the logic analyser and just print out the responses from the TD120x to console by modifying the code, adding a first print after boot to check out device information such as version.


Z1 with a SIGFOX interface


After checking the TD120x documentation the command to send data is quite straightforward:
AT$SS=[HEX1][HEX2]... [HEX12]

As mentioned before, up to 12 bytes can be sent in any transaction, more than enough for sending a 16-bit temperature reading from the Z1's built-in TMP temperature sensor.

The sending command expects a number of even hexadecimal "symbols" to be sent, meaning if you have 0x123 the modem will return an error, as it expects something like 0x0123.  All data should be sent encoded as hexadecimal, and leading zeroes might be needed depending on your data format.

After wiring my temperature sensor callbacks to be forwarded to SIGFOX the following messages were received, showing the mote was close to 28.5ºC at the moment of the test.  Most of my messages are being sent close to the 868Mhz frequency, maybe SIGFOX operates solely on the G1 sub-band?



The code used for testing is available at Github.

Wrapping up...


If you like to outgrown the demo, you could add more motes and add radio communication, and use the TD120x-enabled mote as a Gateway with dual wireless interface: sub-1GHz and 2.4Ghz, allowing to forward messages to SIGFOX while locally using other network topologies and protocols, not limited by SIGFOX packet size/throughput, only pushing important data and events such as alarms, periodic readings and others.

So this is the end of the post, I still need to test the callbacks and customising the TD120x using the SDK ,but this post has grown too much already, so I'll leave more for later.
